A Swiss luxury misting system
A constant flow with no risk of clogging, ensuring exceptional longevity for the installation.
Swiss engineering - For the Emirates - Motorised bioclimatic system - Misting
Evaporative Cooling Technology
Misting is not about 'getting wet' like a shower, but rather creating a dry fog that cools the air instantly. It is a direct application of the physical principle of evaporation.
The system operates on a fundamental thermodynamic principle: evaporation requires energy (heat).
- When our nozzles project micro-droplets into the air, they evaporate almost instantly.
- To transition from liquid to vapor, each droplet absorbs ambient heat.
The result: The surrounding air temperature drops significantly.

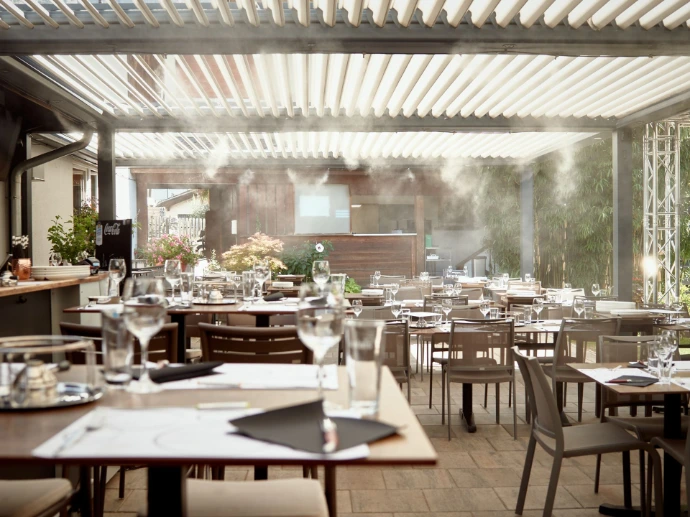

In Dubai, while indoor air conditioning is powerful, it cannot be used on open terraces. Our high-pressure misting system is the unique solution capable of creating a true outdoor microclimate. It transforms an unlivable terrace at 45°C into a pleasant summer lounge at 30°C, allowing you to enjoy lunch or swim at noon, even in August. It is the perfect complement to your bioclimatic pergola.
Our technology eliminates the two major issues of conventional systems: unwanted wetting and nozzle scaling.
The advantages of our misting system
Invisible - Adjustable - Filtering - Low consumption - Drip-free
Discreet Piping Network
The stainless steel or high-strength polyamide piping is seamlessly integrated directly into the louvers or beams of the pergola. No visible piping compromises the sleek design.
Adjustable Nozzle Orientation
The nozzles are strategically positioned to generate a uniform curtain of coolness across the entire living area, without creating uncomfortable drafts.
Advanced Water Filtration
An integrated filtration system (featuring reverse osmosis or sediment filters) treats mains water to prevent limescale buildup. Given the extremely hard water in the Emirates, filtration is essential; without it, nozzles would clog within weeks and leave unsightly white deposits on the aluminum.
Low Water Consumption
A properly sized system consumes approximately 2 to 4 liters of water per hour per nozzle—a negligible amount considering the significant comfort it provides.
Anti-Drip Technology
Our nozzles feature an automatic anti-drip mechanism that prevents residual water from escaping when the pump stops, effectively eliminating limescale buildup at the nozzle tip.
The operation of this
system
Quality - Longevity - Guaranteed results for your villas, restaurants, and cafés

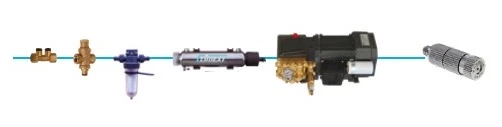

Advanced Filtration System
We connect the filtration system directly to the mains water supply safeguarding your High-Pressure Misting System by filtering out particles that could otherwise impair its performance.
Hydraulic Management
Water pressurised to 60 bars will be measured and controlled up to the High-Pressure diffusers, the nozzles. The water will be atomised into micrometric particles (5 to 10 microns).
Anti-Drip Technology
Our system prevents the formation of residual droplets that can create puddles—a common and bothersome issue when standard misting systems stop. We utilize a specialized Anti-Drip Solenoid Valve, engineered to eliminate dripping upon shutdown and simultaneously release residual pressure within the system after every cycle.
Pressurization
Pressurization occurs immediately after filtration via a High-Pressure Pump Unit. This system boosts incoming mains water from 3 bars to 60 bars for injection into the misting circuit.
Fine Mist Dispersion
Our nozzles are available in various orifice diameters and premium materials, including nickel-plated brass and stainless steel. We offer versatile installation configurations to suit every requirement, mounting the system on ramps, masts, or integrating it with misting fans.
The Control Unit
The Control Unit allows you to monitor and protect your misting system.
