VISION 400 Luxury
shaded pavilions
Adjustable & Retractable Louver
bioclimatic pergola
PERGOLA VISION 400
VISION 400

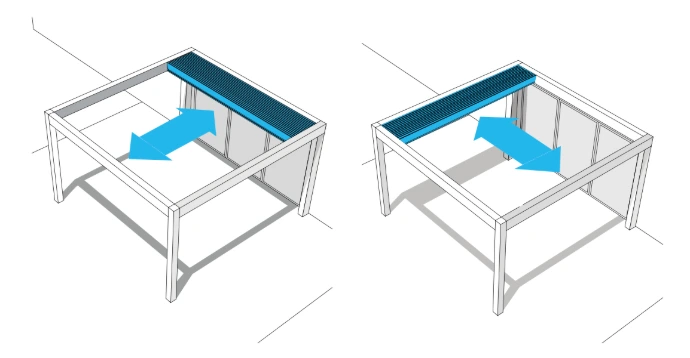

The VISION 400 is a bioclimatic pergola featuring 160° adjustable louvers with unidirectional retraction (retracting to one side).
- Standard Module: 5,200 x 4,000 mm
- Max Double Module (single junction post): 7,860 x 5,200 mm or 10,320 x 4,000 mm
- Max Triple Module (single junction post between two units): 11,720 x 5,200 mm
- Self-Cleaning System: High-pressure nozzle system (Standard).
- Integrated LED Lighting: Three rows of dimmable white LEDs integrated under the louvers. (Standard configuration: 3 strips).
- Water Management: Efficient rainwater drainage from gutters directly through the posts.
- Unidirectional Retraction: Louvers retract smoothly to one side for a clear opening. Invisible Engineering: Powered by a Geiger motor, with both rotation and retraction mechanisms fully integrated within the beam for a seamless look.
Premium Options :
- Integrated Zip Screens
- Open’iT Awning
- Protect Slats Wall
- Glazed Sliding Panels
- High-Pressure Misting System
- Automatic Rain Sensor
- Integrated Audio-Visual System
- Infrared Heating
- Moteurs : Résistance extrême jusqu’à 150 °C.
- Fabrics: Designed for intensive use (hotels, retail).
- Finishes: UV-resistant colours and Qualicoat Seaside certified aluminium.
- Connection: Total control via the Teleco app on smartphone.
It is taken care of from the manufacturing stage. Customer support guarantees the quality of our products. It ensures the durability of our finished aluminium structure and the proper functioning of our high-precision mechanisms. It will be carried out by a team of technicians trained on our products.
Customize your roof opening configuration. Choose between a 50/50 split or a 1/3 | 2/3 distribution. Additional custom configurations are available upon request.
Go to quote
Options
CONTROL OF ORIENTATION -
Patented Technology
White
Anthracite Gray
Black
Other colours on request
Coloris
Finishes
